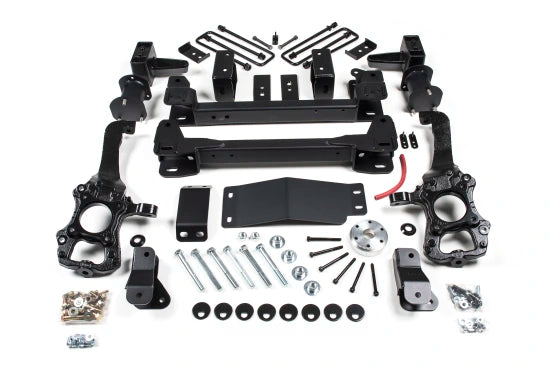

Take your F150 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Front Lift Height | 6" |
Rear Lift Height | 5" |
Front Lift Method | Knuckle & Strut Spacer |
Rear Lift Method | Cast Blocks |
Lift Type | Lift Kit |
Wheel Size | 18 x 9 |
Back Spacing | 5.5" |
Max Tire Size | 37 x 12.5 |
Wheel Size 2 | 20 x 9 |
Back Spacing 2 | 5.5" |
Max Tire Size 2 | 37 x 12.5 |
Wheel Size 3 | 22 x 9 |
Back Spacing 3 | 5.5" |
Max Tire Size 3 | 37 x 12.5 |
Metal Cutting Required | No |
Accommodates Factory Wheels | See Notes |
Welding Required | No |
- 18" or larger diameter wheels required. Stock 17"/18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire.
- 18" wheels with 5-5.5" of backspacing should be test fit prior to mounting tires to ensure proper tie rod end clearance.
- 37x12.50 tires may require some trimming.
- Kit includes a 5" rear block kit (#F2639) that typically nets a slight tail high stance. A 4" rear block kit (#F2419) is available upon request if a more level stance is preferred.
- Models equipped with Auto 4wd may require front driveshaft replacement.
- Requires frame bracket modification.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
- Will NOT work on Diesel Models.
